Oxylife Systems Pvt. Ltd.

Our Products

  • MOSS – the game changer
  • Concentrators & Ventilators
  • PSA technology based Oxygen generating plants at clients’ sites
  • Calibration Services of Medical Equipment /Machines
  • Other Medical / Para-medical / Non-medical services

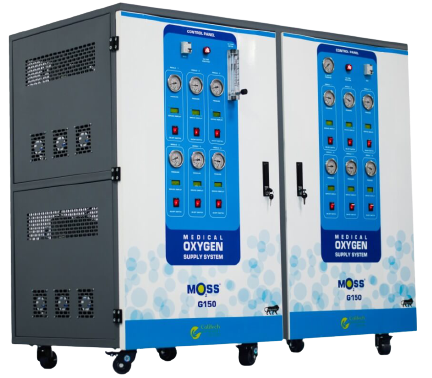

Ideal Oxygen generators for your Hospital and your Patients.

Bringing a revolution in the health care and medical sector. An exclusive device ‘MOSS- Medical Oxygen Supply System’, an excellent PSA Oxygen Generator build by us, which will save lives by supplying Oxygen to patients anytime, anywhere.

  • MOSS is Portable Unique Product which can be shifted or Transported from one place to another
  • Portable and Mobile
  • Real -Time & Fast
  • Unique & Dependent

The Ideal Alternative to Oxygen Cylinders, Available wherever you want!

The New “Portable Moss Oxygen Generator” Takes Care of Your Medical Care Everywhere.

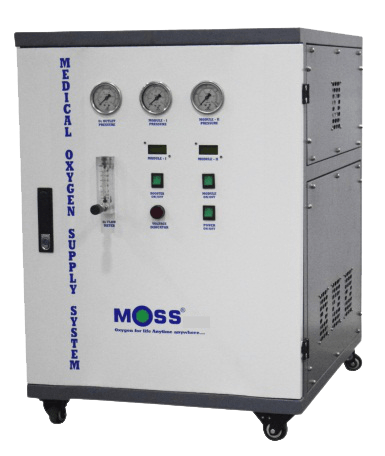

MOSS (MEDICAL OXYGEN SUPPLY SYSTEM) is our steller product -a portable, lightweight, dependable, and user friendly Oxygen Generator available in all ranges ideally suited to your requirements :


At least 10-years life
if maintained as per protocol

Accessible Life Saving
systems, especially in
remote, high-altitude and
emergency areas

Assured 24 x 7
supply of medical
grade oxygen

Meets all Indian
and international
quality standards

No rental
commitments for
bottles/bundles.

No price fluctuations
as against bottled gases
and liquid gases.

No transportation
of bulk
cylinders

No bulk storage
requirements like liquid
Oxygen tanks.

No refilling
of cylinders

MOSS is NOT a Concentrator

Concentrators MOSS
Limited flow of oxygen Uninterrupted quality oxygen generation with constant 4-6 bar pressure.
Purity of oxygen drops after continuous use- keeps declining while in use- not dependable an run 24x7 maintaining the desired purity level of >90%
Suitable for domestic use only Eminently suitable for critical medical solutions in ICU , Ventilators, OT and anaesthesia stations
Maximum shelf life of Concentrators 2 – 3 years Maximum shelf life of Concentrators 2 – 3 years Sturdy, long life (10-15 years) and dependable.

Technology in use

How about producing oxygen from atmospheric air?

Air is free, and it is the only raw material needed for a MOSS

MOSS uses PSA (Pressure Swing Adsorption) technology, which is very mature, well established and time tested. Compressed air is released into an adsorption bed, where zeolite molecular sieves selectively adsorb nitrogen, carbon dioxide, carbon monoxide, etc. The air flow is alternatively regulated to generate a continuous flow of medical grade oxygen.

Detailed process (please provide a link and put the following material)

Oil free Air Compressor
It pulls ambient air from the immediate surroundings.
Refrigeration Dryer
These remove water vapour from the compressed air.
Air Filter
The multistage filtration system removes dust, oil, suspended particles, etc. to ensure non-contamination
Inlet Air Monitoring System
It eradicates molecular sieve contamination and
PSA System
It separates Nitrogen, Carbon dioxide and Carbon Monoxide from Oxygen and Argon (inert gas).
Storage Tank
It stores medical grade oxygen at the required pressure and is used to supply oxygen to individual or multi-node patient beds.
Oxygen Analyzer
It monitors the flow and quality of oxygen at the point of delivery.

Why MOSS ?

(MOSS machines operate on single phase 220 volt electricity and can also run with inverters)

(PSA is a time tested technology. With near zero operating cost, the return on investment can range from a few months to a maximum of 2 years)

(Constantly maintains >90% purity and 4-6 bar pressure making it eminently suitable for any critical applications in ICU, OT , anaesthesia etc)

(MOSS works on a fail-safe technology critical to medical establishments. It generates Oxygen with individually working modular units, which eliminates the risk of whole system failure as compared to all-in-one type Oxygen generators, where fault in one functional unit brings down the whole plant / generator)

(Traditional PSA Generators use Screw Compressor Technology and use Oil as lubrication for the machine. Over time this leads to oil traces leaking into the medical oxygen supply. MOSS generates oxygen from atmospheric air and due to its unique modular design there is 0% chance of oil traces in the supplied oxygen.)

(The machine has a life span of at least 10-15 years. ROI ranges from just a few months to a maximum of 2 years)

(MOSS is genuinely a Plug and Play Machine. Once turned on, it begins to generate medical grade oxygen in as low as 3 minutes. Traditional PSA Generators have an average start time of 45 minutes.)

(The Modular Design makes it light weight, portable and mobile. The most popular G-90 variety, which provides 90 LPM medical grade oxygen, can easily cater to 10 ventilators and it weighs only 420kgs. A few of our MOSS can be seen hanging on the walls. In contrast, traditional PSA generators, on an average, weigh 1.5 tons and once installed they cannot be moved.)

(One of the most recent medical issues that is threatening our healthcare system is the emergence of Black/White/ Yellow fungus in patients. The primary reasons for fungal growth is re-use of oxygen cylinders, which leads to aggravated medical hygiene issues. Since MOSS machines are essentially plants by themselves, use of cylinders are minimised, which leads to a more sterile environment where patients can be treated.)

(MOSS is a completely non-hazardous and safe product. It also protects you from supply shortages and associated losses on account of irregular supplies to operation theatres and emergency rooms.)

Salient features / specifications

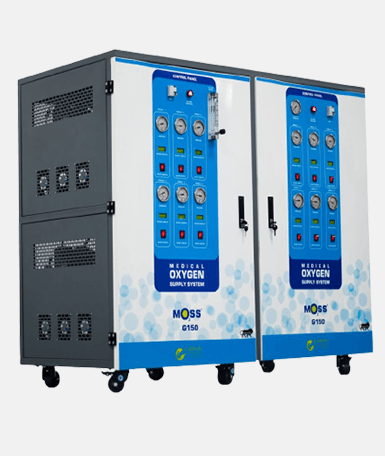

MOSS are available with us in all varieties ranging from 5 LPM to 250 LPM. Detailed specifications of the most popular varieties are as under :

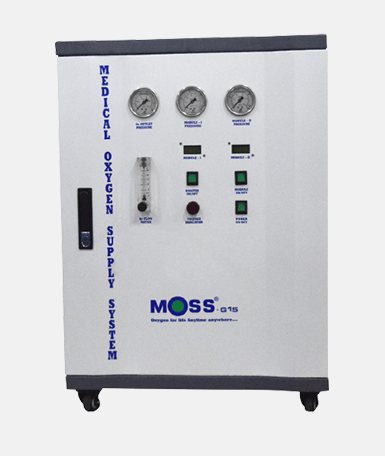

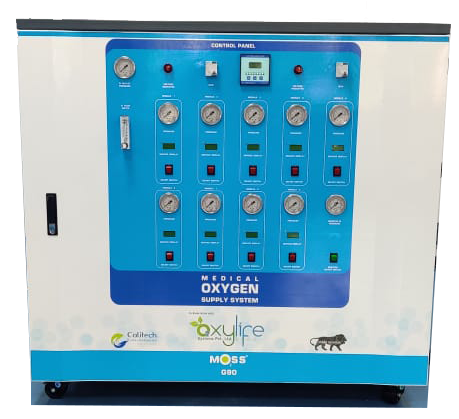

Specifications G-15 G-45 G-90
Time to start 3 minutes 3 minutes 3 minutes
Oxygen Purity 93 +_3% 93 +_3% 93 +_3%
Flow Rate 15+-3 LPM 15+-3 LPM 15+-3 LPM
Can cater 3/5 patients 10/15 patients 20/30 patients
Pressure Bar-any time 4 to 6 Bars 4 to 6 Bars 4 to 6 Bars
Outlet Pressure Max 5 kg/sq cm Max 5 kg/sq cm Max 5 kg/sq cm
Operating Temperature 15 to 40 degree celcius 15 to 40 degree celcius 15 to 40 degree celcius
Humidity 30 to 65 degree/Rh 30 to 65 degree/Rh 30 to 65 degree/Rh
Input Voltage 220 to 240 Volt 220 to 240 Volt 220 to 240 Volt
Frequency 50 Hz 50 Hz 50 Hz
Power Accessibility single phase single phase single phase
Max Power 3 Kw/h 6 Kw/h 12 Kw/h
Equal to number of D-type cylinders 3 9 18
Approx Weight 90Kg 250Kg 460Kg
Size / Dimensions in mm W -550 mm D-800 mm H-500 mm W -750 mm D-800 mm H-1350 mm W -1600 mm D-800 mm H-1350 mm
Fail Safe System -IWMA Available Available Available
Inbuilt Audio visual alarm system Available Available Available
Oil Free Compressor Available Available Available

Application of MOSS in Hospital and Healthcare centre

Connected to central
pipeline of the hospital

Installed in Operation
theatre for patients

Connected to
ICUs

Connected to Ventilators
and Anesthesia machines

Installed directly
to patient bed or General ward

Emergency ward
Casualty Centre

Used in
Ambulance

What makes MOSS unique ?

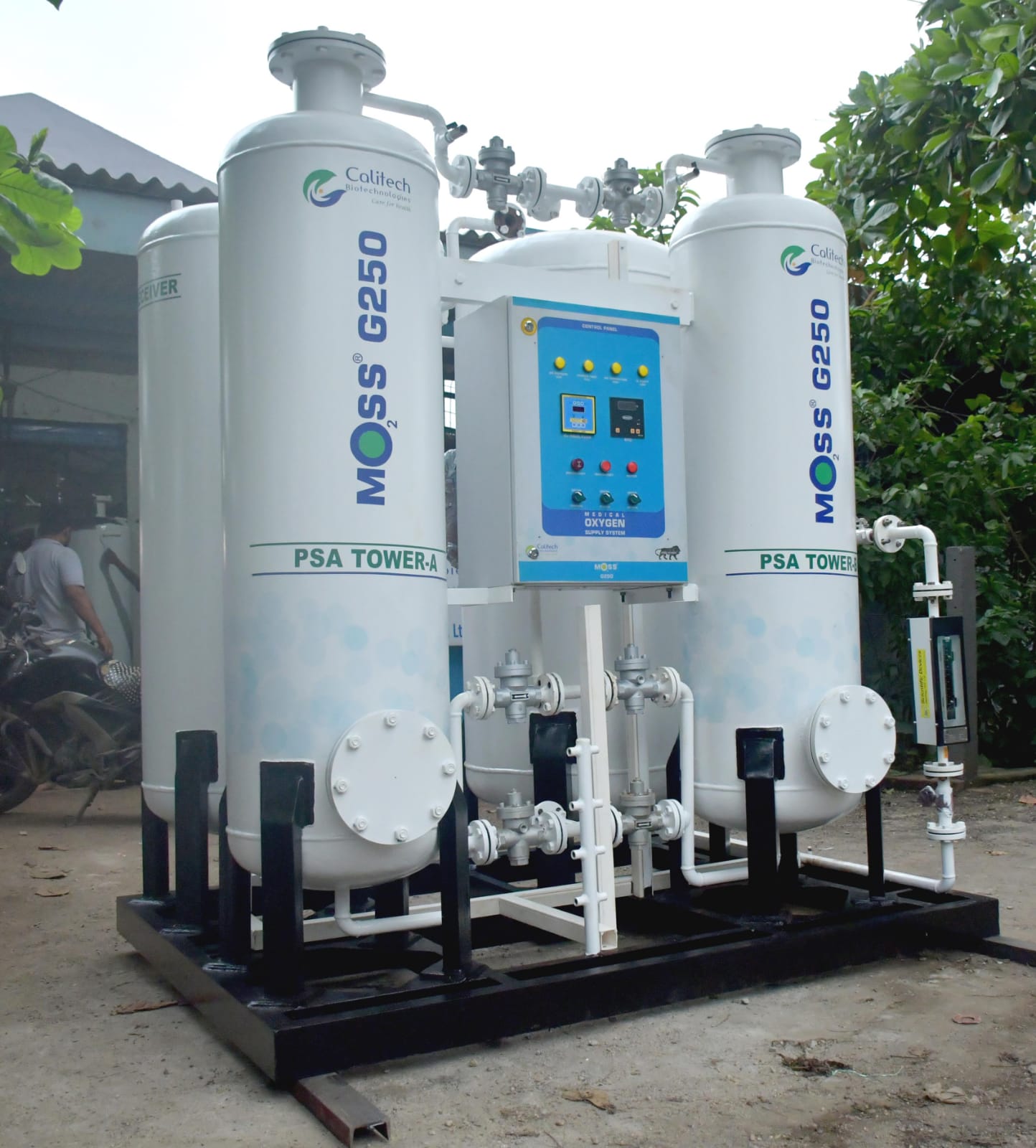

PSA PLANTS

Oxylife Systems Pvt Ltd is well equipped to provide supply and installation services for turn key medical oxygen distribution systems at facilities of every scale from 500 LPM to 2000 LPM. We have an experienced installation team that can take on any gas distribution project and flawlessly execute :

  • MANIFOLDS SYSTEM & STORAGE TANK INSTALLATIONS
  • PIPELINE LAYOUT & DISTRIBUTION FROM SOURCE TO POINT OF USE
  • AUTO-SWITCH OVER SYSTEM TO BACK UP CYLINDERS INCASE OF POWER FAILURE
  • In fact, our 250 LPM MOSS machines comfortably double up as portable oxygen plants for small / mid-size hospitals, clinics and other health care facilities.

OUR SERVICES

We provide a wide range of services ranging from need analysis, pre-defined solutions to most enquiries, installation, commissioning, training of operating personnel, service videos, guidance through video calling to AMC , rental services and other logistics supports.

Need Analysis

Our technical team helps you to decide on the right configuration and selection of suitable model of MOSS / PSA plant.

Pre-defined solutions

WPredefined solutions are provided to most enquiries through brochures.

Installation & commissioning

Installation and commissioning of plants and machines are done by an experienced team of engineers and technicians.

Training of operating personnel

MOSS machines are most operation friendly and can be used by normal hospital staff. Suitable training and hand holding sessions are held from time to time to increase awareness of the operating staff about the different automated features and help them acquire specific skills to improve performance. We conduct training sessions for our customers’ staff in areas like commissioning, installation, operation and maintenance of our products.

Service Videos and Guidance through Video calling

MOSS machines are system driven and all operations are automatic. In-built audio-visual alarm system is in place to dictate any necessary action. When storage tank gets filled, the gas generator will go to automatically goes to sleep and restarts once the pressure in storage comes down. Service videos, pictures and video calling are also available for the facilities to save time.

Accessories

Our customers have access to the entire range of accessories and components for efficient operation of our MOSS and PSA plants, which meet all international testing standards. Many of these accessories like small filters can be changed by the operator themselves.

AMC

OXYLIFE offers quick, reliable and trusted maintenance service support to all its customers. Once our team is contacted, our engineers immediately respond to resolve the issue remotely through video calling. However, in case the issue is unresolved, our service engineers visit the site to resolve / fix the issues.

Rental Services

In case any customer is looking for reduction in investment, we are open to offering MOSS machines on ‘annual rental’ contract basis with added corrective maintenance service support.

Logistics support

Keeping in view the sensitivity of the machines, we have a dedicated team to ensure ‘safe’ and ‘timely’ delivery. Smaller machines to remote areas are also transported through air cargo.

We believe in long term, sustainable and mutually beneficial relationship with all our customers.
